Bowers XT Holematic Groove Set 6 mm - 20 mm
Order-No.: U2510607b
3930,00 EUR
(plus 19% VAT = 4676,70 EUR)
(plus. Shippingcosts)
Delivery time: 2-4 Weeks
Delivery times subject to intermediate sale.
Order / Offer request:
☎ 0049 351 4219125
📠 0049 351 4219127
✉ info@praezisionstools.de
Digital internal measuring device set - Bowers XT Groove Holematic, with Bluetooth®
Measuring range 6 mm - 20 mm, reading: 0.001 mm
including depth stops, setting rings and UKAS calibration certificate, in a case
▾ more details ▾
More details

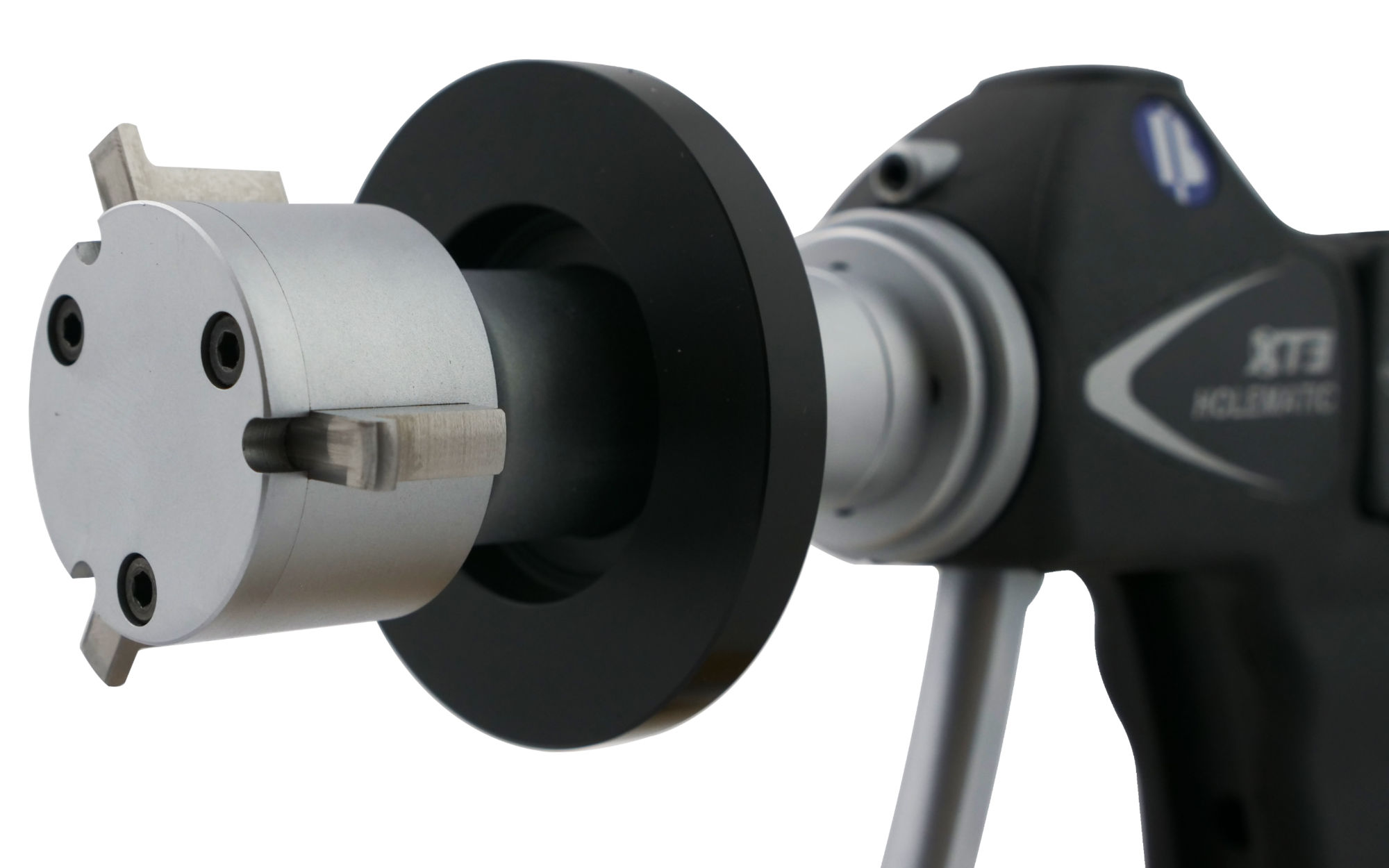

Bowers XT Groove digital 3-point internal quick measuring devices in a set
Bowers No.: SP-SXTH10M-BT-GRO
- protection class IP67 (water and coolant-tight)
- Sylvac system
- measuring surfaces offset, made of hardened steel
- Minimal insertion diameter of the groove profile: 0.3mm below the minimum
- when using depth stops, the heads can be used simultaneously for measuring smooth and grooved holes
- constant measuring force, spring-loaded
- with proximity data output
- with Bluetooth® interface for transferring measured values to smartphone or tablet via free APP for Android and iOS

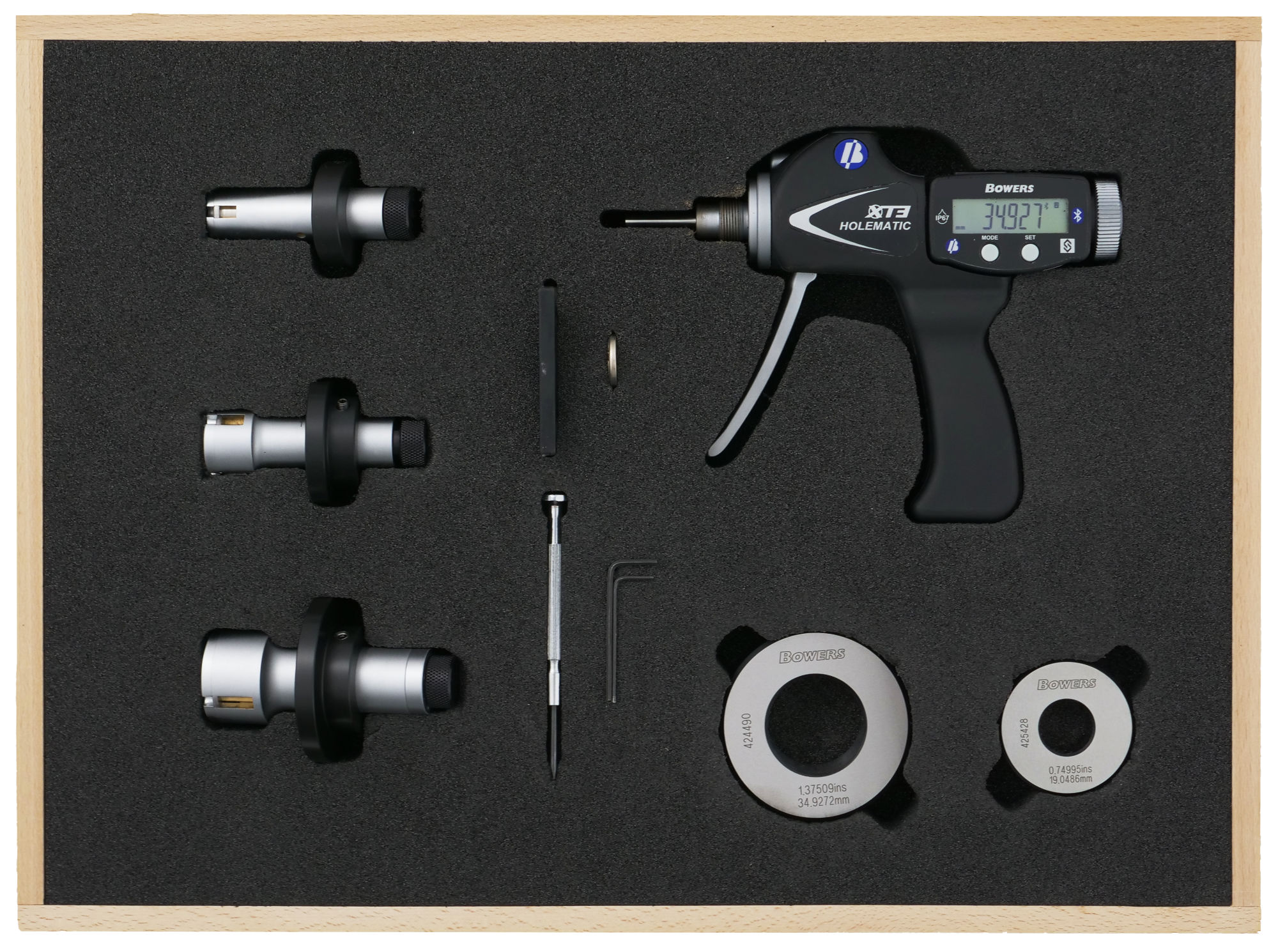

Delivered in a case, including Setting rings, UKAS calibration certificate and depth stops
- Reading: 0.001 mm / 0.00005 inch
- for groove width: 1.5 mm
- for groove depths: 1.25 / 1.50 / 2.00 / 2.50 mm
- Measuring depths: 58 mm / 62 mm
- max. error limit: 4 µm
- Depth stops Ø: 18 / 20 / 22 / 26 / 33 mm
- Weight: 2.7 kg
- mm/inch switching
- 0-point position
- Reading switchable 0.01 / 0.001mm
- +/- Preset function
- max. / min. value memory
- Hold function
Digital internal quick measuring devices XT GROOVE for measuring special groove profiles, individual devices, measuring surfaces made of hard metal and extensions on request.
Bowers No.: SP-SXTH10M-BT-GRO
General information
- according to DIN 863- protection class IP67 (water and coolant-tight)
- Sylvac system
- measuring surfaces offset, made of hardened steel
- Minimal insertion diameter of the groove profile: 0.3mm below the minimum
- when using depth stops, the heads can be used simultaneously for measuring smooth and grooved holes
- constant measuring force, spring-loaded
- with proximity data output
- with Bluetooth® interface for transferring measured values to smartphone or tablet via free APP for Android and iOS
Delivered in a case, including Setting rings, UKAS calibration certificate and depth stops
Technical data
- Measuring range: 6 mm - 20 mm / .25 - .8 inch- Reading: 0.001 mm / 0.00005 inch
- for groove width: 1.5 mm
- for groove depths: 1.25 / 1.50 / 2.00 / 2.50 mm
- Measuring depths: 58 mm / 62 mm
- max. error limit: 4 µm
- Depth stops Ø: 18 / 20 / 22 / 26 / 33 mm
- Weight: 2.7 kg
Functions
- On/Off- mm/inch switching
- 0-point position
- Reading switchable 0.01 / 0.001mm
- +/- Preset function
- max. / min. value memory
- Hold function
Digital internal quick measuring devices XT GROOVE for measuring special groove profiles, individual devices, measuring surfaces made of hard metal and extensions on request.
