Articulated gauging arm Fisso STRATO µ-LINE A-13, Magnetic base Höhe: 228 mm
Order-No.: U1400601
354,00 EUR
(plus 19% VAT = 421,26 EUR)
(plus. Shippingcosts)
Delivery time: 4 Weeks Delivery times subject to intermediate sale.
Order / Offer request:
☎ 0049 351 4219125
📠 0049 351 4219127
✉ info@praezisionstools.de
Precision measuring stand from Fisso Strato µ-Line A-13 P+S3, with mechanical centre lock and µ-fine adjustment, Total height: 228 mm, Holding strength: 600 N, Radius of movement: 130mm
▾ more details ▾
More details
The Strato μ-Line is an expansion of the Strato Line into areas requiring
extremely high precision. The articulated arm stands out
due to its well-dimensioned components, very high stability and accuracy. The precision fine adjustment with excellent ease of setting and high repetitive accuracy makes the unit exceptionally well suited for measurements in the µ region.

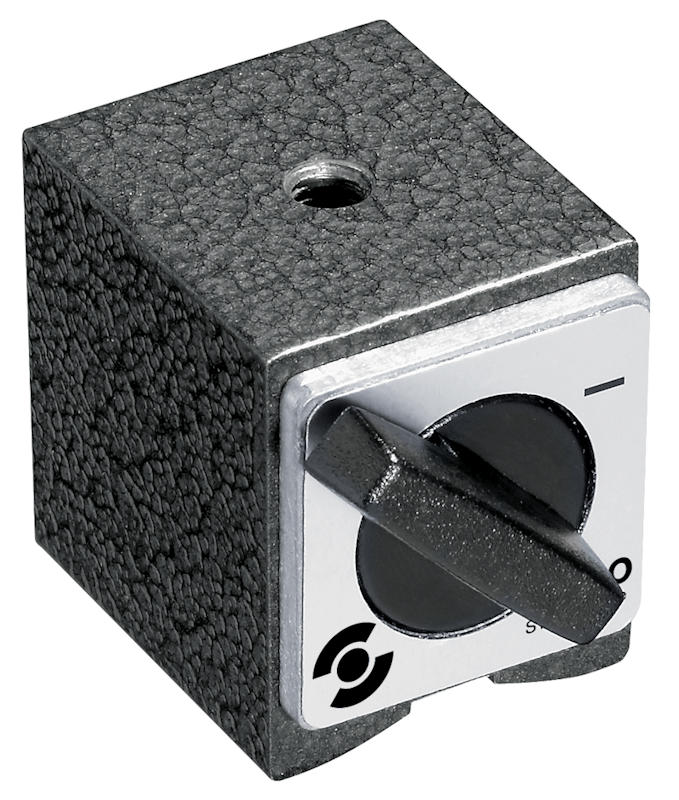

- with switch magnet
- mechanical centre lock
- µ-fine adjustment
- magnetic V-Base
- Delivery without dial gauge
- Radius of movement: 130 mm
- Thread top/bottom: M6/M6
- Dimension Magnetic base: 40 mm x 40 mm x 40 mm
- Holding strength: 600 N
- with switch magnet
- mechanical centre lock
- µ-fine adjustment
- magnetic V-Base
- Delivery without dial gauge
Technical specifications:
- Height: 228 mm- Radius of movement: 130 mm
- Thread top/bottom: M6/M6
- Dimension Magnetic base: 40 mm x 40 mm x 40 mm
- Holding strength: 600 N
